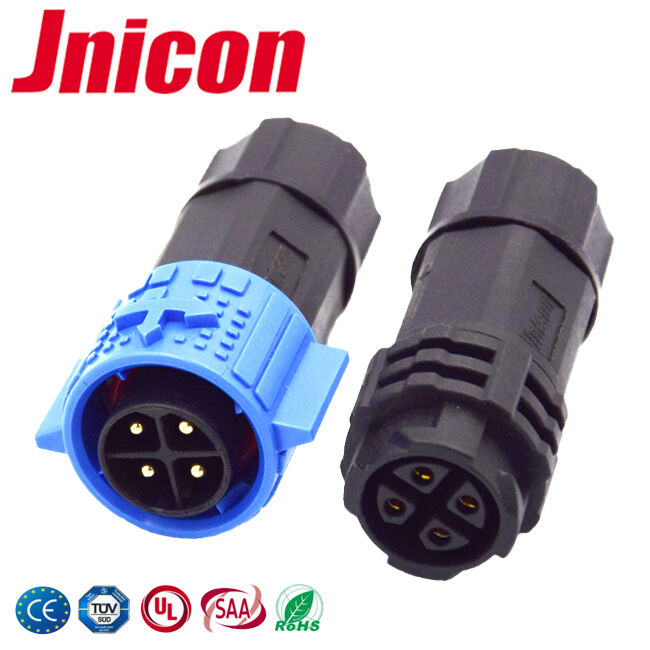

20AWG-12AWG Cable M19 20A Power Waterproof IP67 Circular Plastic Connectors

20AWG-12AWG Cable M19 20A Power Waterproof IP67 Circular Plastic Connectors

  • 20AWG-12AWG Cable M19 20A Power Waterproof IP67 Circular Plastic Connectors
20AWG-12AWG Cable M19 20A Power Waterproof IP67 Circular Plastic Connectors
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 100 (10 Pairs of samples)
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: D/A, L/C, D/P, T/T, Western Union,
Supply Ability: 10000 sets/day
Contact Now
Detailed Product Description
Product Name: M19 Wire To Wire Connector Current Rating: 20A/300V
Connector Type: Waterproof Power Connector Protection Level: IP67
Flame-resistant Rating: UL94-V0 Function: For Electrical Power Extension
Highlight:

M19 20A waterproof circular connectors

,

IP67 plastic power cable connectors

,

20AWG-12AWG waterproof cable connectors

IP67 Cable to Cable Waterproof Connectors With Multipin Male Female Plug



Product description



Cable to cable connectors could be a good option for outdoor indoor electrical power extension, well protect your equipments or lights fixtures, widely used for landscape lights, wall washer bar, led display, industrial equipment or machine.



1. Multi-pins connector for different industrial demands

2. High quality outer case,more fire safety,stable, compression, anti-explosion and anti-deformation

3. Gold-plated contact, high performance of corrosion resistance and electrical

4. Conductivity effectively deal with temperature rise.

5. IP67 waterproof level.

6. Rated current : 20Amps



Technical data:



Cores No.: 2pin,3pin,4pin and multipin are available
Connector type : Push locking connector
Waterproof level:

IP67

Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-12mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A/50A are available
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V
Contact resistance: <5mΩ
Insulation resistance: >500MΩ



Material:



Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel



Application fields:



Stage equipment The smart grid LED lighting
Medical equipment Battery charing Automation
Solar energy equipment Ship equipment Agriculture
Electric power equipment Vehicle equipment Ebike/motorcycle
Communications equipment LED display Transportation
