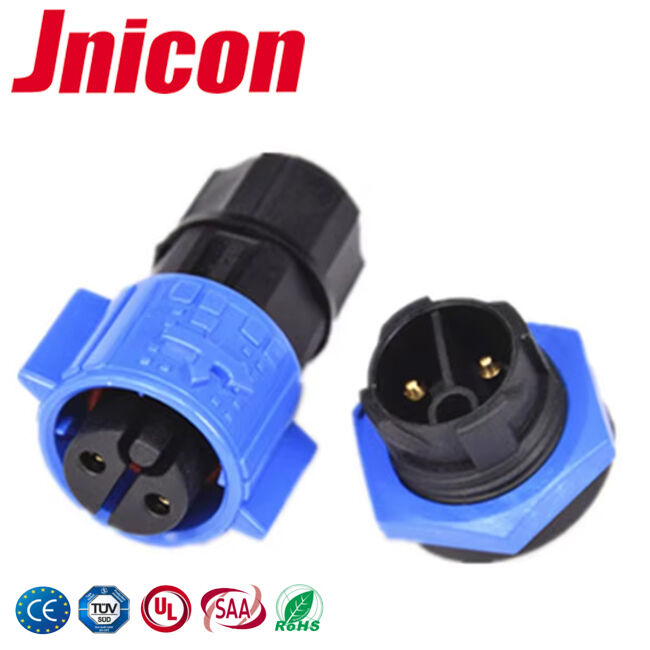

IP67 Wire To Board Connector 2 Pin Waterproof Power Connector 300V For Outdoor Electronics

IP67 Wire To Board Connector 2 Pin Waterproof Power Connector 300V For Outdoor Electronics

  • IP67 Wire To Board Connector 2 Pin Waterproof Power Connector 300V For Outdoor Electronics
IP67 Wire To Board Connector 2 Pin Waterproof Power Connector 300V For Outdoor Electronics
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CQC
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 100 (10 Pairs of samples)
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, , D/P, D/A, L/C,
Supply Ability: 10000 sets / Day
Contact Now
Detailed Product Description
Model: M19 Contact Pin: 2 Pin Power
Current Rating: 20A Voltage Rating: 300V
Certification: TUV,UL,CE,CQC Material: PA66&Copper Alloy
Highlight:

IP67 waterproof wire to board connector

,

2 pin waterproof power connector

,

300V outdoor electronics connector

Jnicon M19 Wire To Board Connector 2Pin 20A Male Female Panel Mount Connectors





Description of M19 Wire to Board connectors



  • Communications Application
  • product coding machines
  • inventory product coding
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Features:​

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved



Main characteristics

  • Sealed against dust and fluid (IP67)
  • Vibration resistance,impact resistance,stretching resistance
  • Cable assembly support
  • Customized cable size and length



Operation Parameters
Voltage Rating 300VAC max.
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



FAQ



1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.



IP67 Wire To Board Connector 2 Pin Waterproof Power Connector 300V For Outdoor Electronics
