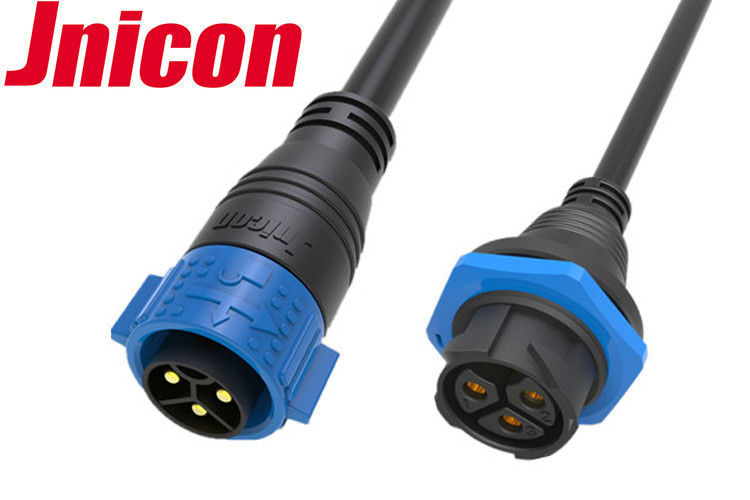

Gold - Plating Male Waterproof Panel Mount Connector , M25 Insulated Female Cable Connector

Gold - Plating Male Waterproof Panel Mount Connector , M25 Insulated Female Cable Connector

  • Gold - Plating Male Waterproof Panel Mount Connector , M25 Insulated Female Cable Connector
Gold - Plating Male Waterproof Panel Mount Connector , M25 Insulated Female Cable Connector
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High Quality export carton
Delivery Time: 3-6 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Protection Level: IP67 Gender: Male Plug Female Socket
Pin: 5Pin Power Connector Current Rating(A): 30A Max.
Material: PA66 Operating Voltage: 500V
High Light:

panel mount plug socket

,

panel mount power connector

Gold-Plating Male Waterproof Panel Mount Connector , M25 Female Insulated Cable Connector



Description of Waterproof outdoor Power Connector



M25 IP67 wateproof connector is one of best-selling series products made with PA66 plastic, to ensure the high stability and multi-core structures. They are one of the cost-effective series for multiple applications.



Why Choose Jnicon to be your Wateproof panel mount connector vendor?

  1. We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
  2. We have a professsional R&D team,specialized in Connectors industry for over 10 years
  3. 7*24H online service !!
  4. We have sales team in your local for strong technical support!
  5. Hardware and cable self-production
  6. Mold making and inject molding
  7. Short delivery time
Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2



M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its unique structure, Connecting to each other just takes a second.



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Widely used for the belowed application:



  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Technical Features:



  • 50A@48V DC Maximum
  • 50A@600V AC Maximum
  • Max Cable width 18.0mm (0.70in)
  • Min. Cable width 5.5mm (0.21in)



Advices for choosing a suitable connector



  • Confirm Current Rating and Number of Contacts
  • Confirm Assembly style
  • Confirm Cable Wire guage
  • Confirm Cable Length and Requested quantity
  1. Gold - Plating Male Waterproof Panel Mount Connector , M25 Insulated Female Cable Connector 0
