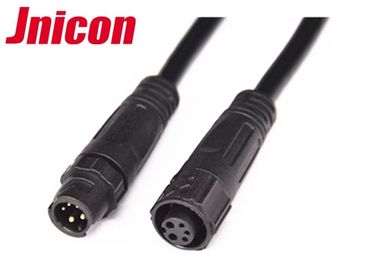

IP67 DC Multi Pin Power Connector Waterproof Dustproof 5 Pin Quick Lock Type

IP67 DC Multi Pin Power Connector Waterproof Dustproof 5 Pin Quick Lock Type

IP67 DC Multi Pin Power Connector Waterproof Dustproof 5 Pin Quick Lock Type

Product Details:

Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL , CE , CQC , ROHS
Model Number: M12 Connector

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 - 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 10000 set / days
Contact Now
Detailed Product Description
Color: Black Pin: 5( 2+3 )Pin
IP Rating: IP67 Connecting Type: Quick - Lock
Flame Rating: UL94-V0 Housing: PA66

IP67 DC Power Multi Pin Connectors Waterproof Dustproof 5Pin Quick Lock Type



Application of Multi Pin Connectors



  1. LED lihgt , like wall washing light , color light , garden light , stage light etc .
  2. Communicaiton
  3. Automation
  4. New energy
  5. Marine electronics



Description of  Waterproof Connector



  • 5Pin waterproof male to female connector
  • Waterproof dustproof  cable connector
  • 5 ( 2+3 ) Pin connector , 2 pin power supply , 3 pin signale supply
  • Operating current and voltage : 10A + 5A , 125V + 60V
  • Cable specification : 18+20 AWG
  • Protectiong level : IP67 ( can be used in indoor or outdoor environment )
  • Length of cable : according to your application



Parameter of Multi Pin Connectors



Specification
Product Name M12 5Pin connector
Operating Current / Voltage 10A + 5A 125V + 60V
Withstanding Voltage 1000V
IP Rating IP67
Cable Specification 18+20AWG
Diameter Range MAXφ9.0mm
Temperature -40℃ - 105℃
Connecting Mode Bayonet Type
Material of housing PA66
Temperature -40℃ - 105℃
Material of Cable UL94 - V0
Color of Connector Black
Application Lighting
Warranty 5 Years



  • This connector belongs to waterproof cable connector , no assembly type
  • Connect with cable by soldering
  • Material of cable : rubber / nylon / pvc
  • Both connector and cable can be used in cold / hot environment , they are rugged and resistant to wear and damage.



Male Connector Picture



IP67 DC Multi Pin Power Connector Waterproof Dustproof 5 Pin Quick Lock Type

Female Connector Picture



IP67 DC Multi Pin Power Connector Waterproof Dustproof 5 Pin Quick Lock Type



Service

  • Step 1 : deal with inquiry in 24 hours
  • Step 2 : Confirm specification of waterproof circular connector , like current , voltage , material of cable , length of cable , specification of cable etc .
  • Step 3 : provide the delivery time according to order and production department ( usually the delivery time about 5 - 7 day after payment )
  • Step 4 : inform the message via email when the good sent out
