Name: Jnicon Multi Pin Connectors Waterproof , 6 Pin Waterproof Connector Power / Signal Adapter
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Home Products Multi Pin Connectors Waterproof

Jnicon Multi Pin Connectors Waterproof , 6 Pin Waterproof Connector Power / Signal Adapter

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Jnicon
Certification:	UL / TUV / CE / ROHS / CQC
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Price:	Negotiable
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3 - 5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, ,Paypal
Supply Ability:	10000 / day

Contact Now

Detailed Product Description

Name:	Multi Pin Connector	Type:	Socket
IP Class:	IP68	Connector Type:	Push Lock Type
Shell:	PA66	Color:	Black
Highlight:	multi pin electrical connectors , multi pin circular connectors

6Pin Jnicon Multi Pin Connectors Waterproof IP68 Power And Signal Adapter

Product Description

multi-pins 6pin for varies industrial demands.
gold-plated contact, high performance of corrosion resistance.
electrical conductivity effectively deal with temperature rise.
PA66 shell performance stable, compression, anti-explosion and anti-deformation
easily lock by plug/unplug snap fastener ,ensure safe and stable.
solder and pressure on copper needles completely comply with outdoor installation.

Datasheet of Multi Pin Connector

Connecting mode:	plug/unplug
Protection level:	IP65/IP67
Cable specification:	0.5 mm2 ~1.5 mm2 / 20~16 AWG
Diameter range:	Φ4.5mm ~Φ11mm
Current rating(A):	15A + 5A
Operating voltage(AC.V.rms):	300V + 60 V
Temperature rating:	-40°C~105°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Contact pin:	gold-plated

How to buy our product ?

Please do as below :

confirm the current and voltage
confirm cable specification and cable range you want to solder
confirm the application environment , indoor or outdoor
confrim the quantity you want
sample is ok for quality test

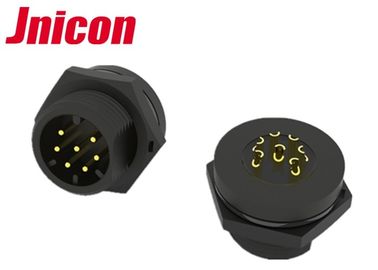

Photo Display

Jnicon Multi Pin Connectors Waterproof , 6 Pin Waterproof Connector Power / Signal Adapter

Quantity Control and Our Service:

(1) We test each item before shipping to ensure they are in good condition.
(2) We offer you fast shipping, usually around 7-10 days preparation.
(This is an approximate time, your shipment date would be up to your specific orders.)
(3) We would let you know the tracking number once we have delivered your products.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

F*a

Belize Jan 11.2026

Helpful (2950)

We have purchased waterproof connectors many times. The product consistency is very good, no quality difference in different batches. The waterproof and shockproof performance is excellent, suitable for outdoor power equipment and agricultural machinery. The supplier responds quickly to emails and messages, solves problems efficiently, and has a very good cooperative attitude. Will recommend to our industry partners!

K*n

Germany Feb 24.2025

Helpful (1w+)

Very strict factory quality control! We placed a large bulk order and inspected every batch of goods carefully. The product consistency is perfect, no defective products, no burrs, no dimensional deviation. Fully meets German industrial production standards.

F*l

United Kingdom Oct 30.2024

Helpful (1.3w+)

The connector is lightweight and designed reasonably for quick installation and wiring. It saves a lot of manual installation time and improves our working efficiency greatly. The plug and unplug feel is smooth, not tight or loose, very user-friendly design.
