Screw Quick Multi Pin Connectors Waterproof 12 Pin Auto Electrical Connecting

Screw Quick Multi Pin Connectors Waterproof 12 Pin Auto Electrical Connecting

Screw Quick Multi Pin Connectors Waterproof 12 Pin Auto Electrical Connecting

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: UL/CE/TUV/CQC/RoHS
Model Number: Multi Pin Connectors Waterproof

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag; 2.Carton; 3.As per customer's requirement
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Paypal,Western Union
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Name: Multi Pin Connectors Waterproof Application: Data
Color: Black Rated Voltage: 300V
Operating Current: 10A Certificates: UL/CE/TUV/CQC/RoHS

12 Pin Screw Quick Multi Pin Connectors Waterproof IP68 Auto Electrical Connectors



Product Descriptions



* Contact pin: 12pin
* Accepted Max. Cable OD: 11 mm
* UL, TUV, CQC, CE, RoHS approved
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions



  Multi pin connectors is widely used in electronic, instrumentation, video processing, medical equipment and other Led electrical signal connection. Especially for frequent connections need to be separated, need to shield the instrumentation and equipment on the electrical signal connection.



Product Parameter



Specifications
Connecting mode Screw locking
Protection level IP68
Cable specification 0.5mm2 ~ 2.5mm2 /20~14AWG
Diameter range Φ5mm ~Φ11mm
Contact diameter Φ1.0
Current rating(A) 5A
Operating voltage 60V
Withstand voltage 500V



How to buy the Waterproof connector?



* Confirm the Cable Materials,specification and length;

* Confirm the Core Number and Core Diameter;

* Choose Right Plugs according to Detailed Requirements;

* Confirm the rated current.



Good quality exterior cable plug:
  With environmental protection material:high performance engineer plastic is good for environmental protection, please feel free to use the outdoor junction box.


Long service life exterior connector :
  UV resistance makes it anti-aging,3 or 5 years life time when used in normal environment(but don't immerse waterproof electrical connectors in the the water for long time )



Picture show

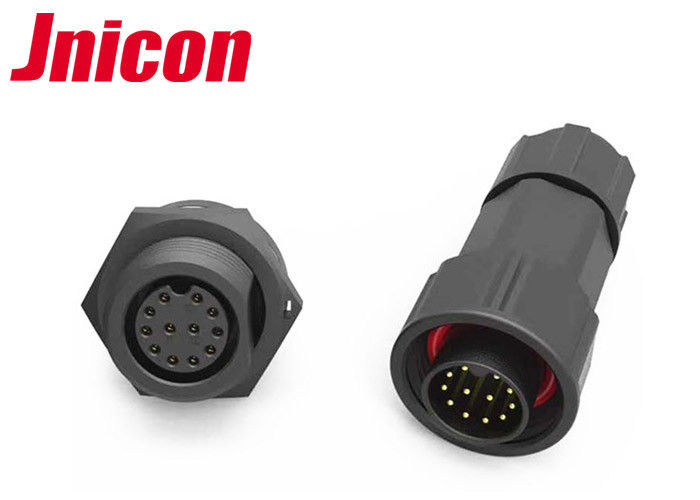

Screw Quick Multi Pin Connectors Waterproof 12 Pin Auto Electrical Connecting
