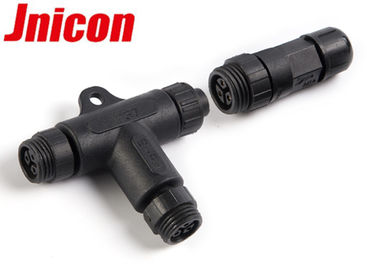

3 Way Electrical Waterproof Connector Plug T Type 3 Pin Screw Locking

3 Way Electrical Waterproof Connector Plug T Type 3 Pin Screw Locking
3 Way Electrical Waterproof Connector Plug T Type 3 Pin Screw Locking

Large Image :  3 Way Electrical Waterproof Connector Plug T Type 3 Pin Screw Locking

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: UL,TUV,CE,ROHS,CQC
Model Number: M16

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Product Model: T Type Waterproof Connector Pole No.: 2 /3 /4 Poles
Connection Way: Screw Locking Weterproof Level: IP68
Rated Current: 10Amps Warranty: 5 Years
High Light:

outdoor plug connector

,

watertight plugs connectors

3 Way Electrical Connectors T types 3 Pin Screw Locking Waterproof Connector



Product Description



  • IP68 waterproof level
  • T shaped waterproof connector
  • Flexiable connection to different cable length and spec
  • Screw locking connection method
  • 10A current rating
  • 2 pin,3 pin and 4 pin available



Technical Specification



Connector type : Waterproof T connector
Connector color: Black
Waterproof level: IP68
Cable specification: 20AWG-16AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 10A
Operating voltage (AC.V.rms): 300V
Connection method: Screw locking connector



T shaped waterproof connectors coudl be a flexiable option to different applications or fields, such as audio,vidio,stage lighting,landscape light etc. let's different cable length to connect together,easy to install and disassemble it.

IP68 waterproof level let it could be for underwater and underground applications, such as pool lights, marine using etc.



Material Info



Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel



Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable.

Screw locking designing let's your installation and repair more simple and fast.



Popular Applications



Stage equipment The smart grid LED lighting
Medical equipment Battery charger Automatic
Solar energy equipment Ship equipment Agriculture
Electric power equipment Stage lighting equipment Ebike/motorcycle



3 Way Electrical Waterproof Connector Plug T Type 3 Pin Screw Locking 0
