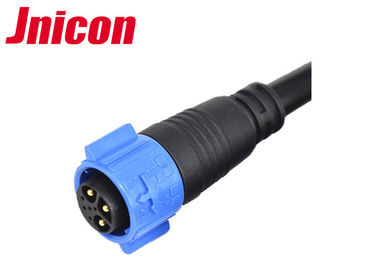

Multi - Pin 3 + 5 Pin Waterproof Plug Connectors , IP68 Outdoor Push Lock Connectors

Multi - Pin 3 + 5 Pin Waterproof Plug Connectors , IP68 Outdoor Push Lock Connectors

Multi - Pin 3 + 5 Pin Waterproof Plug Connectors , IP68 Outdoor Push Lock Connectors

Product Details:

Place of Origin: China
Brand Name: Jnicon
Certification: TUV, UL, 3C, CE, ROHS, ISO90001
Model Number: Waterproof plug connectors

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiable
Packaging Details: 1.plastic bag 2.carton 3.As per customer's requirement
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pair/day
Contact Now
Detailed Product Description
Product Type: 3+5 Pin Screw Locking Waterproof Plug Connector Contact Diameter/number: ∅ 2.0mm+ ∅0.8mm
Waterproof Degree: IP 67 Diameter Range: ∅ 4.5mm~∅ 11mm
Current/voltage Rating: 15A+5 A/ 300V+60V OPERATION TEMPERATURE: -40℃~105℃

Multi-Pin 3+5 Pin Waterproof Plug Connector IP68 Outdoor Push Locking Connector


Main features of Multi-Pin 3+5 Pin Waterproof Plug Connector IP68:



• M19 series 2 to 22 pins are available and for varies industrial demands. male ,female and socket are available.

• the current/ voltage of waterproof male female connector are 5A/60V. the withstanding voltage is 1000V AC.

• the contact diameter is ∅2.0mm(3 pin)+ 0.8mm(5 Pin).

• High current application safety and stable wire. 1.5mm~0.5mm² wire for 3+5 pin M19 series screw Locking waterproof plug connector.
•​ Operate temperature: -45°C~+85°C.

• waterproof plug connector have IP67 waterproof protection level, and it can used in door, outdoor.


The specifiction of 3+5 pins waterproof plug connector



SPECIFICATION
Designation 3+5 pin male female waterproof power connector
Model No. 53-100811-01
Item Specification
1. Electrical characteristics
1A Contact Resistance 10mΩ max.
1B Insulation Resistance 10MΩ min.
1C Withstand Voltage 1500V AC There shall be no breakdown.
1D Rating 15A+5 A/ 300V+60V
2. Mechanical
2A Mating/Unmating force Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2B Life test Mating & Unmating 500 cycles


Application

► M19 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights,       equipments etc, have high waterproof degree--IP67.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.



Material and operation temperature:



Material
A Contact Plating 1u" gold plating
B Contact material Brass (C3604)
C Housing material PA66
Environmental
A Flammability   UL 94V-0
B Operation temperature range: -30℃~+80℃
C Preservative temperature range: -40℃~+85℃



More detail:



• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Vibration resistance,impact resistance,stretching resistance.

• OEM/ODM are accepted. cable length can customized.
