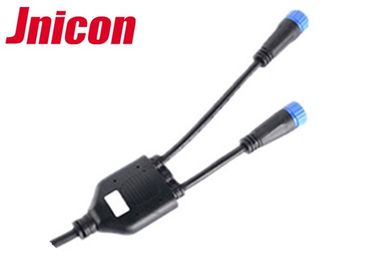

1 In 2 Out Watertight Plugs Connectors Y Type 20A 300V Electrical Splitter

1In 2 Out Y Type Cable Waterproof Plug Connectors , 20A 300V Electrical Splitter

Application Range of Waterproof Connector

For Jnicon waterproof connector , it is the electronic componet to transport the signal , power , both signal and power . Waterpoof connector plays a important role our life , although its volume is smalll .

For the application range , there are some specification examples ,like  PV inverter , Electric vehicle ,Medical equipment , Interactive Smart Grid , Automation machine , Industrial PC , Marine device , Outdoor LED display , Outdoor LED lighting .

Datasheet of 1 In 2 Out Y Type Splitter

Choosing Tips of Splitter connector

If you want to buy splitter from us , please confirm the information step by step :

• the use of the environment, indoors or outdoors, waterproof or not;
• the current-voltage and the realization of the function, to determine the cores;
• select the appropriate clamp diameter and sheath;
• confirm the connector in parallel in series .
• there are 1 in 2 out , 1 in 3 out , 1 in 4 out , 1 in 5 out splitter could be choosed
• any other questions  , please contact me directly for informaiton . our engineer can provide the solution if necessary .

Splitter Waterproof Cable Connector without connecor

Splitter connector can connect with following connector

1. M12 / M15 / M16 / M19 / M25 connector
2. Corresponding current and voltage : 10A / 20A / 30A / 50A   300V / 500V
3. Cable OD : max φ 16
4. Cable specification : max 2.5mm2

( If you just want the Y connector without other connector , it 's ok , just tell me the cable specification and quantity of splitter )

​Finished  Product - 1 In 2 Out Y Connector Connect With M15 Connector
