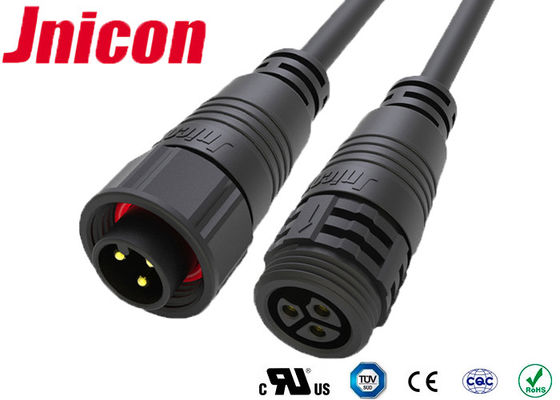

M19 Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors

M19 Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors

M19 Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CQC
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, , D/P, D/A, L/C, MoneyGram
Supply Ability: 10000 sets / Day
Contact Now
Detailed Product Description
Protection Level: IP68 Contact Pin: 3 Pin Wire To Wire
Connecting Model: Screw Locking Current Rating: 20A
Standard: TUV,UL,CE,CQC Feature: Vibration Resistance

Jnicon M19 Cable Molded 20A Male Female 3Pin Connectors Waterproof IP68





With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.



The best customer service is the cornerstone of operations here at Jnicon . We are also welcome OEM and ODM orders, welcome selecting a current product from our catalogue, or seeking assistance for your application, you can talk to our international sales team about source requirements.



Description of 3 Pin Connectors



Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M19 connectors will be a perfet option. it is widely used in many application. such as:



  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment



Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved



Electrical Parameters
Number of Poles 2Pin power 4Pin signal
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.



Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2. Q: How to buy your products?


A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.



3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.



M19 Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors
