4 Jack Waterproof DC Power Connector Panel Mount Plug And Socket Aviation Connect

4 Jack Waterproof DC Power Connector Panel Mount Plug And Socket Aviation Connect

4 Jack Waterproof DC Power Connector Panel Mount Plug And Socket Aviation Connect

Product Details:

Place of Origin: Shenzhen China
Brand Name: Jnicon
Certification: UL , CE , CQC , ROHS
Model Number: Powercon Female Connector

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3 - 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal
Supply Ability: 10000 pcs / day
Contact Now
Detailed Product Description
Name: 4Pin Powercon Female Connector Cable Specification: 24 - 20 AWG
Color Of Connector: Black Withstanding Voltage: 1500V
Diameter Range: Max φ12 Temperature: -25℃ - 80℃

4 Jack DC Power Waterproof Panel Mount Connector , Plug And Socket Aviation Connector



Advantage / Feature



  • For protection level , IP44 and IP65 are available , can use indoor and outdoor led screen
  • Waterproof panel mount connector with great quality : UL approved
  • For the number of pin , 2pin , 3pin , 4pin is optional
  • For connector color , blue , yellow and gray color could be choosed
  • Different cable size and length available , wecome to do customization
  • Housing : nylon
  • Flame rating : UL94 - V0
  • Cable specificaton of 4pin waterproof panel mount connector : 0.3mm2 - 0.5mm2



Our Service



  • Deal with the inquiry in 24 hours
  • Delivery time about 3 - 5 days
  • We accept customization good whether it is connector , cable or package
  • Other special requirement , just contact me
  • Our engineering can provide the complete solution according to your requirement
  • Warranty : 5 years



Datasheet / Specification of Waterproof Panel Mount  Connector



Name Powercon Plug Connector
Number of contacts 4
Current/voltage rating 10A 300V
Color Black / Blue / Yellow
Withstanding voltage 1500V



Protection level IP65 / IP44
Cable Specification 24-20AWG
Diameter range MAXφ12mm
Operating temperature -25℃ - 80℃
Material of copper needles Copper alloy
Shell High - performance engineering plastics
Warranty 5 Years
Connecting mode Quick - Lock



FAQ



I am interested in your product .

  • Confirm the color of connector you want
  • Confirm the plug and socket , or you just want one of them
  • Confirm the connector with cable or not



I want the connector in urgent

  • We will provide reply in 24 hours
  • Then give the delivery time according to stock
  • Usually the delivery time about 3 - 5 days



Can you provide the samples ?

  • Yes , we can provide 1-3 set free samples for quality test , but the shipping cost should be paid



Picture Show

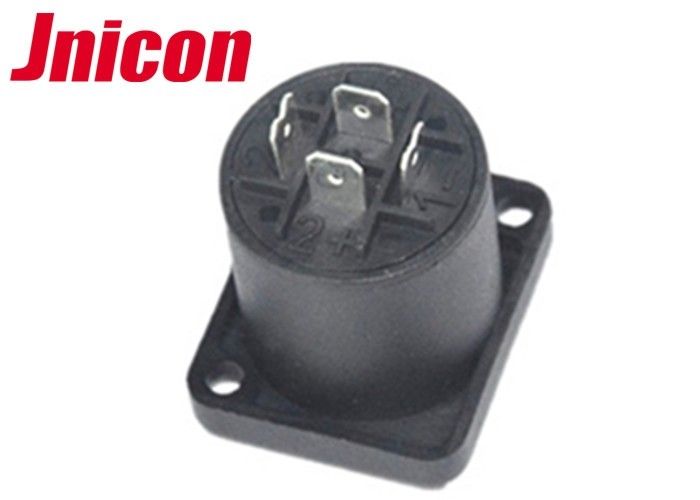

4 Jack Waterproof DC Power Connector Panel Mount Plug And Socket Aviation Connect
