Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | UL/CE/TUV/CQC/RoHS |
| Model Number: | Multi Pin Connectors Waterproof |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag; 2.Carton; 3.As per customer's requirement |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C,T/T,Paypal,Western Union |
| Supply Ability: | 10000pcs/day |

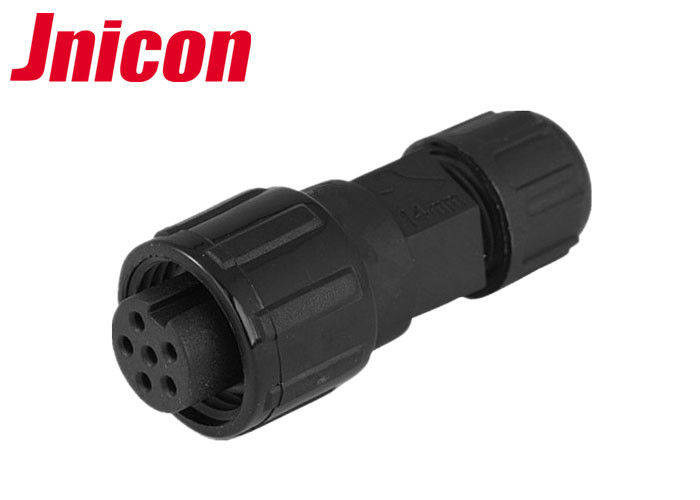

| Product Name: | Multi Pin Connectors Waterproof | Connecting: | Screw Lock |
|---|---|---|---|
| Operating Voltage: | 300V | Protection Level: | IP68 |
| Operating Current: | 10A | Color: | Black |
| High Light: | multi pin circular connectors,multi pin power connector,Multi Pin Connectors Waterproof 10A |
||
Product Descriptions
* IP68 rating
* Current rating: 10A
* Voltage rating: 300V
* Accepted Max. Cable OD: 9 mm
* Field installable, soldering or screw connection
* UL, TUV, CQC, CE, RoHS approved
* High quality with 12 months waranty
* Pin range: 2-8
*Color : Black
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions
Jnicon Service and Warranty
1. Small MOQ can meet your business very well.
2. We treat you as our friends.
3. The products are directly from our factory. So it saves a lot secondary cost.
4. The production only will start after you confirm the samples and the products will do 100% inspection before shipping.
5. Please send us your design and other important information. OEM are always welcome.
Product Parameter
|
Curret Rating |
10A |
|
Product Name |
Multi Pin Connectors Waterproof |
|
Times of plug/unplug |
Above 500 times |
|
Cable OD Rating |
OD≤9.0mm |
|
Material |
ROHS Environmental protection material |
|
Cable Type |
PVC, PU, Rubber, Silicon |
|
Shell material |
Flame-resistant /anti-UV nylon (PA66)RL94V-0 |
|
Compression connection type pin hole |
Brass |
|
Seal-O-Ring |
Silicon |
|
|
|
|
Porperty: |
|
|
Contact resistance |
<10 mΩ |
|
Eelectric resistance |
500 MΩ at DC500V |
|
Standing voltage |
3KV Under normal temperature |
|
Operating temperature |
45°C~ +105°C |
|
Waterproof Rating |
IP 68 |
Our Services
• Our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract
• Early design-in capability,OEM, ODM are available
• Provide free samples within 3 working days if it is normal product with existing tooling
• Zero-distance service and phone number for around-the-clock service
Product Dimention
