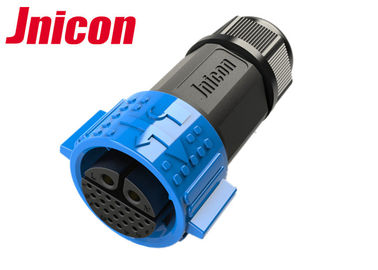

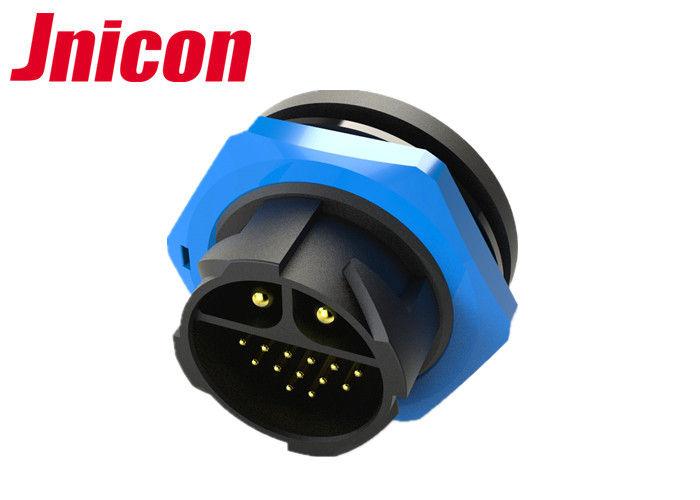

High Voltage Waterproof Data Connector M25 20 Pin IP67 Panel Mount Blue Color

High Voltage Waterproof Data Connector M25 20 Pin IP67 Panel Mount Blue Color

  • High Voltage Waterproof Data Connector M25 20 Pin IP67 Panel Mount Blue Color
  • High Voltage Waterproof Data Connector M25 20 Pin IP67 Panel Mount Blue Color
High Voltage Waterproof Data Connector M25 20 Pin IP67 Panel Mount Blue Color
Product Details:
Place of Origin: China
Brand Name: Jnicon
Certification: CE,TUV,UL,RoHS
Model Number: M25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3-6 working days
Payment Terms: T/T,Paypal,L/C,Western Union
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Protection Level: IP67 Gender: Power Female Data Male
Pin: 2 Power 20 Data Current Rating(A): 50A Max.
Assembly Wire: Soldering Color: Blue
High Light:

panel mount plug socket

,

panel mount power connector

20Pin Panel mounting Waterproof Data Connector , M25 High Voltage Waterproof Connector



Description of waterproof multi plug



  • 2Pin for power,50A max.20Pin for data
  • Create waterproof connections easily
  • Soldering required.Or we could provide pre-assembly service
  • 2-Pin for 2 Wires,20-Pin for 20 Wires
  • Perfect solution for power and data combined application
  • IP67 Rating-Fully Waterproof Design
  • Great for any outdoor configuration.

Widely used for the belowed application:

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Operation Parameters

Voltage Rating 300VAC max
Current Rating 30A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material

Silicone





The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close when connected together.



Electrical Parameters
Number of Poles 3 power 9 data
Current Rating 30A max
Voltage Rating 300VAC max
Durability Voltage 2500VAC @ 60 s.
