Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | UL,TUV,CE,ROHS,CQC |
| Model Number: | M19 |
| Minimum Order Quantity: | 100 (10 Pairs of samples) |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3-5 working days |
| Supply Ability: | 10000pcs/day |
| Model Number: | 18 Pin Connector | Protection Level: | IP67 |
|---|---|---|---|
| Rated Current: | 5 Amps | Cable Range: | 0.3-0.5mm2 |
| Application: | For Signal Data Connection | Warranty: | 5 Years |
| Highlight: | multi pin circular connectors,multi pin power connector |
||

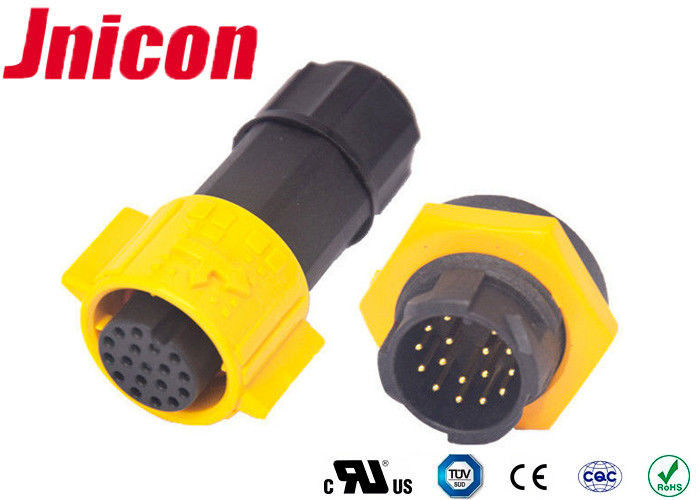

Power Signal 18 Pins Waterproof Connectors For Electronic Distribution Outdoor
Product Description:
1. Push locking type waterproof connector
2. IP67 protection level
3. Solder cable assembly to your applications
4. Multicolor available, such as Blue,yellow,black
5. Multicores are available, 12pin,15pin,16pin or 18pin
6. High Performance Engineer Plastic
18 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission,stage lighting equipment etc.
Cable to cable and Panel mount type connector are optional.
Technical Data
| Core No. : | 18pin |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 0.3-0.5mm2 |
| Cable diameter range: | 4.5mm-12mm |
| Rated current (A): | 5A |
| Operating voltage (AC.V.rms): | 125V |
| Withstand voltage (AC.V)1min: | 500V |
High quality material
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
High quality material to ensure and improve your applications performance, 18 pin waterproof connectors is a good choice to data transmission no matter for equipment or lights fixtures.
RFQ
Q: Are you a factory or trading company?
A: Yes, we are definitely factory, you are very welcome to visit our factory at your convenience, which Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
Contact Person: Ms. Carly Lu
Tel: +86 15986694303
