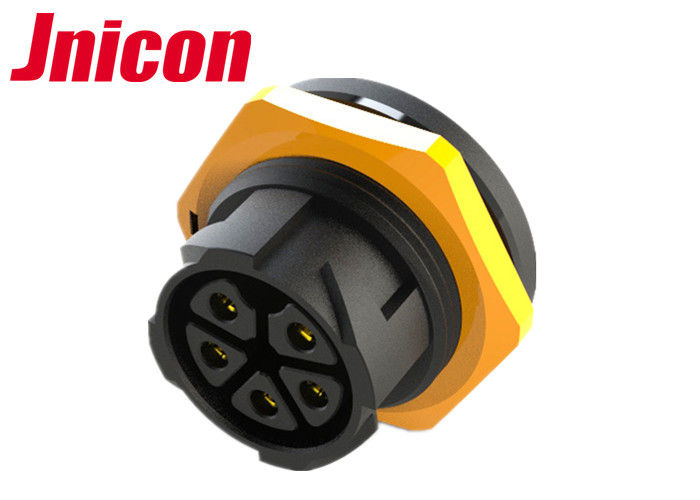

M25 Waterproof Bulkhead Electrical Connectors Female 5 Pin 20A IP67 For Device

M25 Waterproof Bulkhead Electrical Connectors Female 5 Pin 20A IP67 For Device

  • M25 Waterproof Bulkhead Electrical Connectors Female 5 Pin 20A IP67 For Device
M25 Waterproof Bulkhead Electrical Connectors Female 5 Pin 20A IP67 For Device
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Jnicon
Certification: TUV,UL,CE,CQC
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~5 working days
Payment Terms: T/T, Western Union, , D/P, D/A, L/C, MoneyGram
Supply Ability: 10000 sets / Day
Contact Now
Detailed Product Description
Connecting Model: Push Locking Contact Pin: 5Pin
Color: Black Current Rating: 15A
High Light:

panel mount plug socket

,

panel mount power connector

Jnicon 5 Pin Bulkhead Waterproof M25 Panel Mount Connector Female 20A IP67 For Device



Description Of M25 Connectors



M25 IP67 wateproof connector is one of best-selling series products made with PA66 plastic, to ensure the high stability and multi-core structures. They are one of the cost-effective series for multiple applications.



Why Choose Jnicon to be your Wateproof panel mount connector vendor?

  1. We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
  2. We have a professsional R&D team,specialized in Connectors industry for over 10 years
  3. 7*24H online service !!
  4. We have sales team in your local for strong technical support!
  5. Hardware and cable self-production
  6. Mold making and inject molding
  7. Short delivery time

M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its unique structure, Connecting to each other just takes a second.



Widely used for the belowed application:



  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Technical Features:



  • 50A@48V DC Maximum
  • 50A@600V AC Maximum
  • Max Cable width 18.0mm (0.70in)
  • Min. Cable width 5.5mm (0.21in)



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2





Advices for choosing a suitable connector



  • Confirm Current Rating and Number of Contacts
  • Confirm Assembly style
  • Confirm Cable Wire guage
  • Confirm Cable Length and Requested quantity

M25 Waterproof Bulkhead Electrical Connectors Female 5 Pin 20A IP67 For Device 0
