| Product Type: | 2 Pin 50 Amp Waterproof Panel Mount Connector | Contact Diameter/number: | ∅ 3.5mm |
|---|---|---|---|
| Current/voltage Rating: | 50 A/ 500V | Operation Temperature Range: | -40℃~105℃ |
| Cable Gauge: | MAX ∅ 6.0mm² | Contact Material: | Copper Alloy |
| High Light: | panel mount plug socket,panel mount power connector |
||

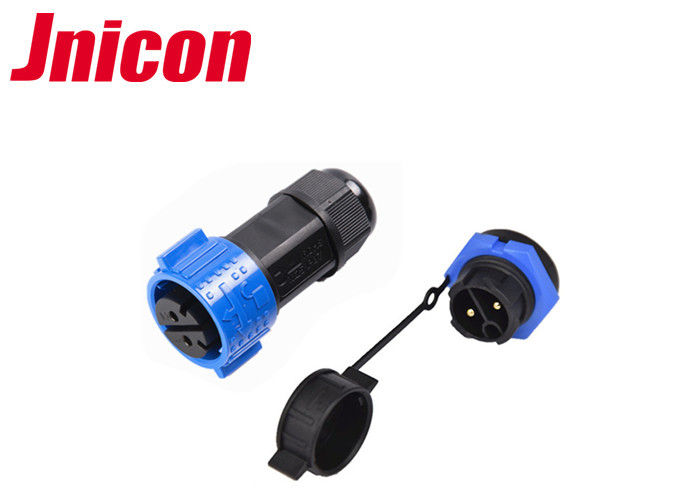

IP67 Electrical 2 Pin 50 Amp Waterproof Panel Mount Connector Plug And Socket
Main features of 2 Pin 50Amp Waterproof panel mount Connector IP67:
• M25 series 2 to 22 pins are available and for varies industrial demands. male ,female and socket are available.
• the current is high, can reach to 50Amps. it can used in automotion and new energy.
• the contact diameter is ∅3.5mm/pin.
• High current application safety and stable wire. 10AWG wire for 2 pin M25 series push Locking waterproof panel mount connector.
• Operate temperature range: -45°C~+85°C.
• waterproof plug connector have IP67 waterproof protection level, and it can used in door, outdoor.
• the current/ voltage of waterproof male female connector are 50A/500V. the withstanding voltage is 2500V AC.
The specifiction of pins waterproof plug connector
| SPECIFICATION | |||||
| Designation | 2 pin waterproof panel mount connector plug socket | ||||
| Model No. | 51-100211-01 | ||||
| Item | Specification | ||||
| 1. Electrical characteristics | |||||
| 1B | Insulation Resistance | 10MΩ min. | |||
| 1C | Withstand Voltage | 2500V AC There shall be no breakdown. | |||
| 1D | Rating | 50 A/ 500V | |||
| 2. Mechanical | |||||
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N | |||
| 2B | Life test | Mating & Unmating 500 cycles | |||
Application
► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
► M25 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.
Material and operation temperature:
| Material | |||||
| A | Contact Plating | 1u" gold plating | |||
| B | Contact material | Brass (C3604) | |||
| C | Housing material | PA66 | |||
| Environmental | |||||
| A | Flammability | UL 94V-0 | |||
| B | Operation temperature range: | -30℃~+80℃ | |||
| C | Preservative temperature range: | -40℃~+85℃ | |||
More detail:
• Vibration resistance,impact resistance,stretching resistance.
• OEM/ODM are accepted. cable length can customized.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
