Shenzhen Jnicon Technology Co., Ltd.
Professional Waterproof Connectors Manufacturer
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Jnicon |
| Certification: | UL/CE/TUV/CQC/RoHS |
| Model Number: | 10A Waterproof Connectors |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1.Plastic bag; 2.Carton; 3.As per customer's requirement |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C,T/T,Paypal,Western Union |
| Supply Ability: | 10000pcs/day |
| Connector Body: | Nylon(PA66) + Metal | Current Rating: | 10A |
|---|---|---|---|
| Material: | High Performance Engineering Plastics | Certificates: | CE, ROHS,UL,TUV,CQC |
| Gender: | Male Female | Application: | Industrial |
| High Light: | IP67 3 Pin Waterproof Power Connector,Male Female Waterproof Power Cable Connector,10A 3 Pin Waterproof Electrical Connector |
||

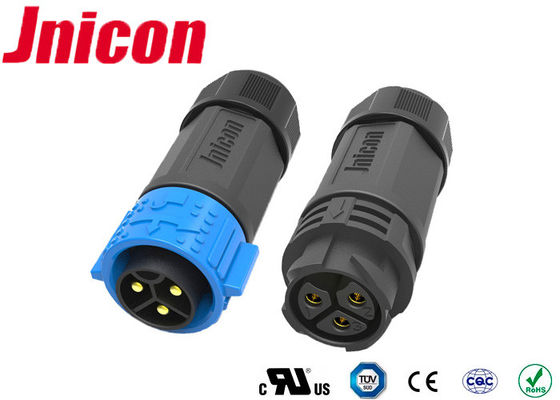

Jnicon MJ16 waterproof connector
Product Parameter
| Specifications | |
| Connecting mode | Snap fastener |
| Protection level | IP67 |
| Cable specification | 0.3mm2 ~ 1.5mm2 /24~16AWG |
| Diameter range | φ3.0mm‐φ10.0mm |
| Contact diameter×Qty | Φ1.5x3 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 1500V |
| Contact resistance | <2.5mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
To Be Your The Best Connection Expert
1) Good quality in ip67 waterproof in locked condition with ISO9001 management under
efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
| Material | |
| Insulated parts | High performance engineering plastics |
| Connector Shell | PA66 + Metal |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Plastic |
| Sealing | Silica gel |
Product Pictures
Product Dimention
Product Application
FAQ
Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
Q4.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
