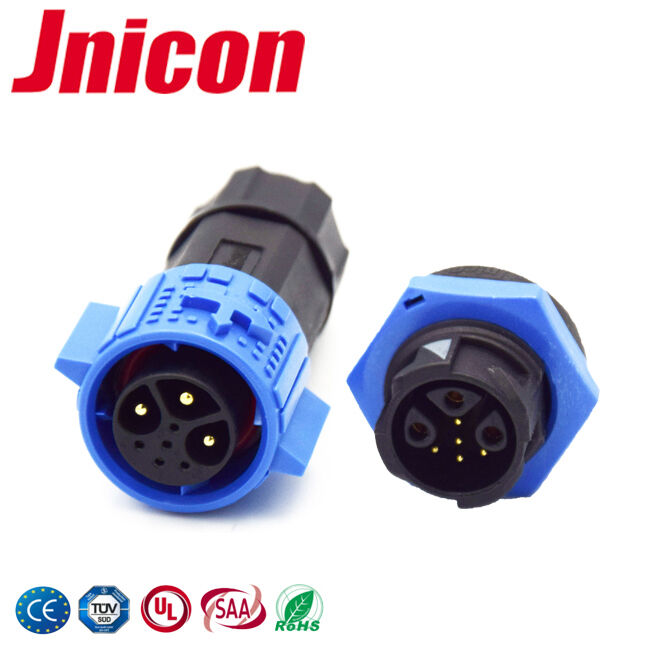

M19 3+5 Multi Pin IP67 Panel Mount Connector 15A+5A Circular Push Lock Connectors

Multi-Pin 3+5 Pin Waterproof Plug Connector IP68 Outdoor Push Locking Connector

Main features of Multi-Pin 3+5 Pin Waterproof Plug Connector IP68:

• M19 series 2 to 22 pins are available and for varies industrial demands. male ,female and socket are available.

• the current/ voltage of waterproof male female connector are 5A/60V. the withstanding voltage is 1000V AC.

• the contact diameter is ∅2.0mm(3 pin)+ 0.8mm(5 Pin).

• High current application safety and stable wire. 1.5mm~0.5mm² wire for 3+5 pin M19 series screw Locking waterproof plug connector.
•​ Operate temperature: -45°C~+85°C.

• waterproof plug connector have IP67 waterproof protection level, and it can used in door, outdoor.

The specifiction of 3+5 pins waterproof plug connector

Application

► M19 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights,       equipments etc, have high waterproof degree--IP67.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

Material and operation temperature:

More detail:

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

• Vibration resistance,impact resistance,stretching resistance.

• OEM/ODM are accepted. cable length can customized.

Product detail picture
