300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Jnicon
Certification:	TUV,UL,CE,CCC
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	100 (10 Pairs of samples)
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~5 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union,
Supply Ability:	10000 sets/Day

Contact Now

Detailed Product Description

Contact Pin:

2+4 Pin Power&Signal

Protection Level:

IP67

Material:

PA66

Flame-resistant Rating:

UL94-V0

Highlight:

300V waterproof multi pin connectors

high-temperature resistant plastic connectors

2+4 pin electrical connectors

Blue Black Color 10A Waterproof 2Pin Power Connector 4Pin Data IP67 Waterproof Connector

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

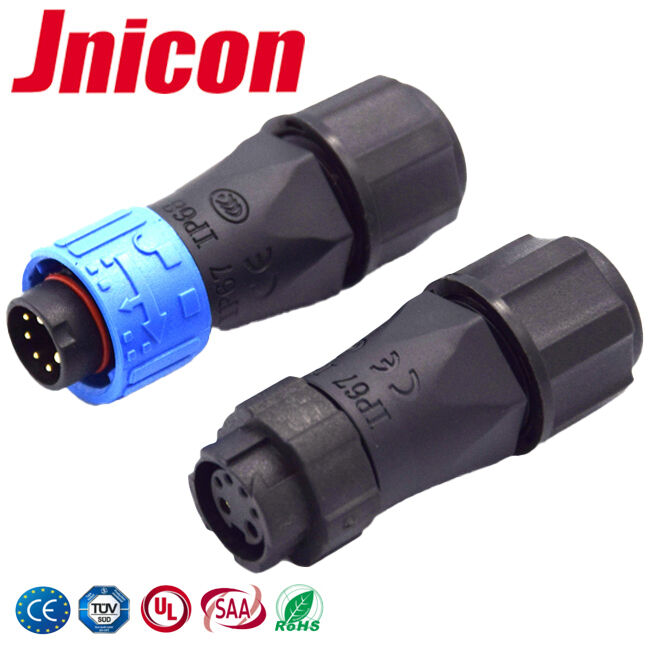

M16 6pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.

Description of 6Pin Waterpoof connnector

6 Pin Ac Power Socket
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
Industrial Electrical Plug socket
socket with cover
6 pin wire to board waterproof connector

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	10A max
Min Wire Size OD	3.0mm ~ 5.0mm
Max Wire Size OD	6.5mm ~ 9.0mm
Max.Cable Cross Section Area	0.5mm2 ~ 1.5mm2

300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

F*a

Belize Jan 11.2026

Helpful (2950)

We have purchased waterproof connectors many times. The product consistency is very good, no quality difference in different batches. The waterproof and shockproof performance is excellent, suitable for outdoor power equipment and agricultural machinery. The supplier responds quickly to emails and messages, solves problems efficiently, and has a very good cooperative attitude. Will recommend to our industry partners!

F*l

United Kingdom Oct 30.2024

Helpful (1.3w+)

The connector is lightweight and designed reasonably for quick installation and wiring. It saves a lot of manual installation time and improves our working efficiency greatly. The plug and unplug feel is smooth, not tight or loose, very user-friendly design.

S*r

Canada Aug 10.2023

Helpful (3w+)

As a purchaser of industrial automation equipment, I have strict requirements on connector stability. This waterproof connector adopts gold-plated pure copper pins, with stable current transmission and no oxidation or poor contact after long-time use. The locking buckle design is very user-friendly, firm connection, no loose and disconnection during equipment operation. The after-sales service is responsive, any technical problems can be solved quickly, and the delivery cycle is always on schedule. Highly recommended!
